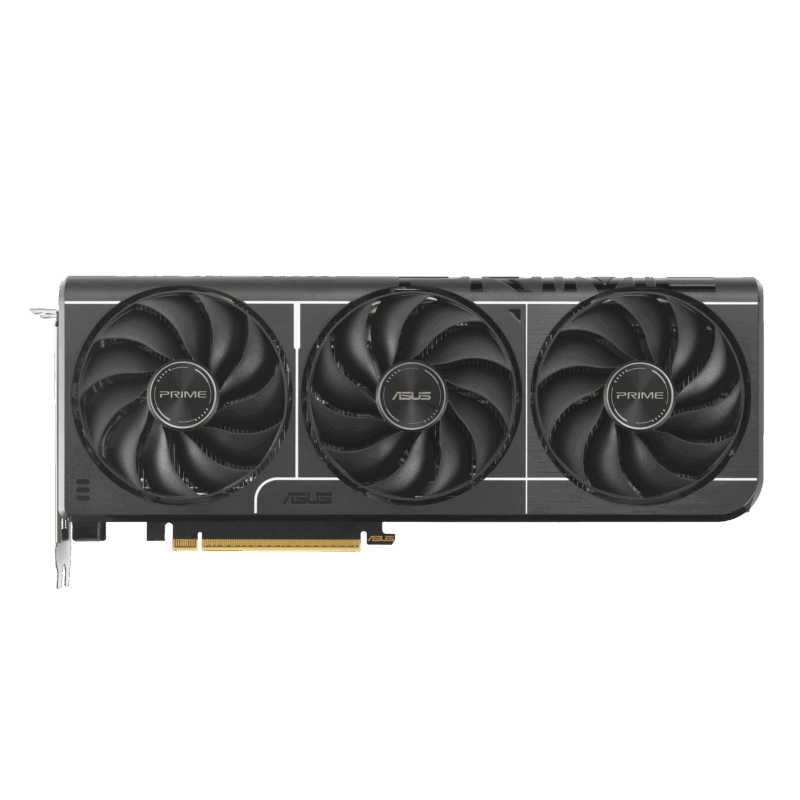

About Asus Prime RTX 5060 Ti 16GB GDDR7 OC Edition Specification Detail Model PRIME-RTX5060TI-O16G GPU Engine NVIDIA GeForce RTX 5060 Ti AI Performance 772 TOPS Bus Standard PCI Express 5.0 OpenGL Support OpenGL 4.6 Video Memory 16 GB GDDR7 Engine Clock (OC mode) 2647 MHz Boost Clock (Default) 2617 MHz CUDA Cores 4608 Memory Speed 28 Gbps Memory Interface 128-bit Max Resolution Digital Max — 7680 × 4320 Display Outputs 1× HDMI 2.1b; 3× DisplayPort 2.1b; HDCP 2.3 support Max Displays Supported 4 NVLink / Crossfire Not supported Accessories Included Speedsetup Manual, Velcro Hook & Loop, Thank You Card Software ASUS GPU Tweak III, MuseTree, Game Ready & Studio Drivers Dimensions 304 × 120 × 50 mm Recommended PSU 550 W Power Connector 1× 8-pin connector Slot Size 2.5-slot design Notable Cooling Features Triple Axial-Tech fans, 0 dB technology, Dual-ball bearings, Vented backplate, MaxContact heatsink Structural & Durability GPU Guard, reinforced backplate, stainless steel bracket Nestled at the heart of ASUS’s latest lineup, the ASUS Prime GeForce RTX 5060 Ti 16 GB GDDR7 OC Edition is a compelling blend of power, efficiency, and smart engineering. Whether you’re building a compact gaming rig, a creative workstation, or a hybrid SFF powerhouse, this card is crafted to deliver uncompromised performance in a sleek, durable form factor. Performance That Speaks Volumes At its core, the RTX 5060 Ti features NVIDIA’s Blackwell architecture—boasting 4608 CUDA cores and undeniably powerful 5th-Gen Tensor Cores. Backed by 16 GB of blazing-fast GDDR7 memory clocked at 28 Gbps across a 128-bit bus, it offers exceptional bandwidth for high-resolution textures, AI-enhanced visuals, and fluid real-time rendering. With a factory overclock to 2647 MHz and support for advanced technologies such as DLSS 4 and Frame Warp, this card delivers smooth, immersive gameplay and accelerated workflows. SFF Efficiency Without Sacrifices The thoughtfully engineered 2.5-slot design is ideal for compact builds. Despite its modest footprint, the cooling solution is anything but limited: triple Axial-Tech fans produce focused airflow, while the MaxContact heatsink increases GPU-to-cooler surface area for improved heat dissipation. The vented backplate and durable dual ball-bearing setup extend longevity and minimize noise—even offering near-silent 0 dB operation during lighter tasks. Breathing Power, Styled with Durability Connectivity needs are well catered for with a single HDMI 2.1b and three DisplayPort 2.1b outputs, supporting up to four displays simultaneously at 8K resolution with HDCP 2.3 compliance. Structurally, the card boasts GPU Guard and a reinforced metal backplate to protect against physical stress, ensuring longevity even with frequent installations or heavy usage. Compact yet robust, it slots into systems with only an 8-pin connector and a modest 550 W PSU—making it accessible and efficient. Software Ecosystem to Maximize Potential Beyond raw hardware, the Prime RTX 5060 Ti is enhanced by software tools such as ASUS GPU Tweak III, which allows fine-tuned control over performance profiles, and MuseTree for AI integration. It is fully supported by NVIDIA’s Game Ready and Studio Drivers, enabling support for DLSS 4, NVIDIA Reflex, G-Sync, Broadcast tools, and the creative suite—making it a strong choice for gamers and professionals alike. Summary Table (for quick reference) Category Specification Highlights GPU & Architecture NVIDIA Blackwell, 4608 CUDA cores, 772 TOPS AI compute Memory 16 GB GDDR7 @ 28 Gbps, 128-bit interface Clock Speeds OC: 2647 MHz, Default: 2617 MHz Cooling Triple Axial-Tech fans, MaxContact heatsink, 0 dB idle, vented backplate Connectivity 1× HDMI 2.1b, 3× DP 2.1b, up to 8K resolution, 4 monitors Build & Power 2.5-slot, metal backplate, GPU Guard, 1× 8-pin, 550 W PSU Software & Extras GPU Tweak III, MuseTree, DLSS 4, Reflex 2, Broadcaster, Studio suite Accessories Manual, Velcro fastener, Thank-you card Final Thoughts The ASUS Prime RTX 5060 Ti 16 GB GDDR7 OC Edition represents a smart investment for users seeking a balance of high-end performance and compact design. It delivers modern GPU power with efficient thermal management and a robust build—all backed by a rich software ecosystem. Whether you’re gaming at high resolution, rendering complex projects, or streaming with AI support, this card equips you for the next generation of computing.
