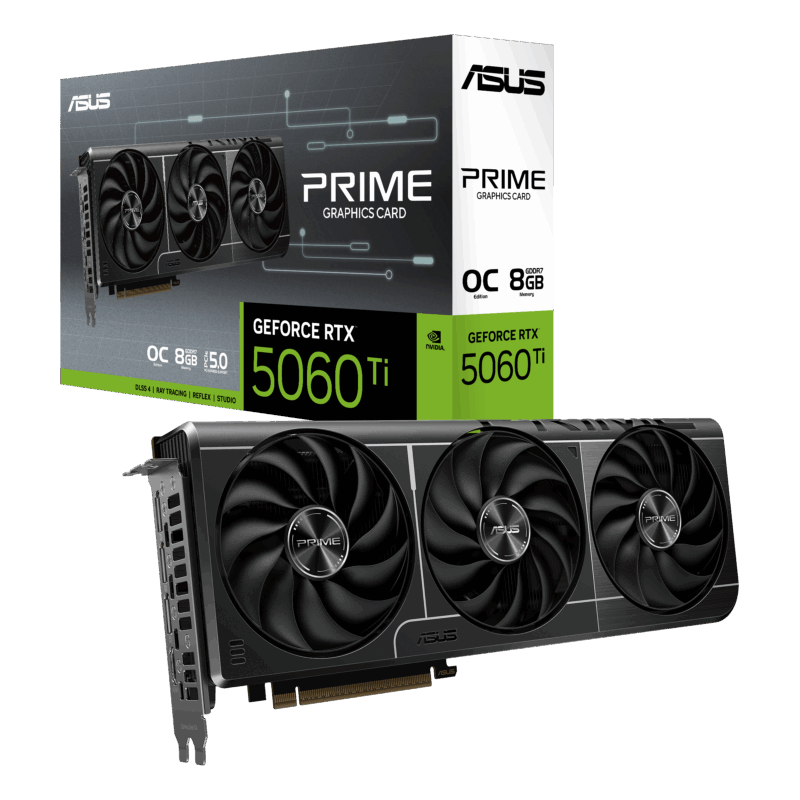

Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition

About Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition Category Specification Graphics Engine NVIDIA® GeForce RTX™ 5060 Ti CUDA Cores 4608 AI Performance 772 TOPS Memory 8GB GDDR7 Memory Interface 128-bit Memory Speed 28 Gbps Memory Bandwidth 448 GB/s Bus Standard PCI Express 5.0 Boost Clock (OC Mode) 2647 MHz Boost Clock (Default) 2617 MHz Maximum Resolution 7680 x 4320 (8K UHD) Display Outputs 1 x HDMI 2.1b, 3 x DisplayPort 2.1b Maximum Display Support 4 Power Connectors 1 x 8-pin Recommended PSU 550W Slot Size 2.5-slot Dimensions 304 x 120 x 50 mm Cooling Technology Triple Axial-tech fans with dual-ball bearings and 0dB technology Dual BIOS Yes (Performance and Quiet modes) Software ASUS GPU Tweak III, MuseTree, NVIDIA GeForce Game Ready & Studio Drivers SFF-Ready Yes OpenGL Support OpenGL® 4.6 HDCP Support Yes (2.3) Accessories Included Speedsetup Manual, ASUS Velcro Hook & Loop, Thank You Card Warranty 3 Years The Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition is a compact yet powerful graphics card designed for gamers and creators seeking high performance in small-form-factor (SFF) builds. Leveraging NVIDIA’s latest Blackwell architecture, this GPU delivers advanced AI capabilities, efficient cooling, and robust reliability. Key Features of the Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition Compact Design: SFF-ready 2.5-slot form factor ensures compatibility with a wide range of PC cases, making it ideal for space-constrained builds. Axial-Tech Fans: Triple Axial-tech fans with longer blades and barrier rings enhance airflow and increase downward air pressure for improved cooling efficiency. 0dB Technology: Fans automatically stop when GPU temperatures drop below 50°C, ensuring silent operation during light workloads. Dual Ball Fan Bearings: Provides up to twice the lifespan of traditional sleeve-bearing designs, enhancing durability. Vented Backplate: Improves heat dissipation, maintaining optimal temperatures during intensive tasks. NVIDIA Blackwell Architecture in the Asus GeForce GDDR7 OC Edition Graphics Card Fifth-Gen Tensor Cores: The Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition delivers maximum AI performance with support for FP4 precision and DLSS 4 technology. New Streaming Multiprocessors: Optimized for neural shaders, enhancing AI-driven graphics rendering. Fourth-Gen Ray Tracing Cores: Enables full ray tracing with neural rendering, providing true-to-life graphics and cinematic visuals. AI-Enhanced Graphics: Supports DLSS 4 with Multi Frame Generation, boosting frame rates and image quality. NVIDIA Reflex 2 with Frame Warp: Reduces system latency for faster target acquisition and improved responsiveness in competitive games. Cooling System in the Asus Computer Gaming Graphics Card 2.5-Slot Design: The carefully designed shroud, heatsink, and heatpipe layout allow the three Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance beyond the compact size. Axial-Tech Upgrades: The Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition features a smaller hub to facilitate longer blades and a barrier ring to increase downward air pressure. 0dB Technology: Eliminates unnecessary noise by halting all fans when the GPU temperature drops below 50°C and power consumption is low. Dual Ball Fan Bearings: Provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate: Significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. Reliability and Engineering of the Asus Dual BIOS Desktop Graphics Card ASUS GPU Guard: Applies adhesive to secure all four corners, reducing the risk of cracks and ensuring uniform mounting pressure. Protective Backplate: Reinforces the PCB, adding structural rigidity and protecting components and trace pathways from damage. Stainless Steel Bracket: The mounting bracket is made of 304 Stainless Steel, offering increased hardness and corrosion resistance. Auto-Extreme Technology: An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, reducing thermal strain on components and avoiding the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall. Software and Tuning of the Asus Prime OC Edition Graphics Card GPU Tweak III: An intuitive and feature-rich utility that offers: One-click overclocking for hassle-free performance boosts. Detailed hardware monitoring. Power target adjustments. Custom fan curves. A revamped interface for greater accessibility. Voltage-Frequency tuner for easier overclocking. 0dB fan technology. Automatic profile swapping. Fully customizable on-screen display and logging capabilities. MuseTree: An AI-powered image-generation app designed to spark creativity. It allows users to effortlessly create and manage images and visual ideas, unlocking endless inspirations. With its intuitive visual interface, generating stunning images has never been easier, and since it runs locally using your hardware, it frees you from the limitations of cloud-based services. Additional NVIDIA Features of the Asus Computer Gaming Graphics Card NVIDIA ACE: Supports digital humans and AI assistants, enhancing interactive experiences. NVIDIA Studio: Accelerates creative workflows with specialized tools and technology. NVIDIA Broadcast: Enhances video and audio quality for streaming and conferencing. Ninth-Gen NVIDIA Encoder: Provides efficient and high-quality video encoding. Game Ready and Studio Drivers: Deliver the best experience for your favorite games and creative applications, ensuring maximum performance and reliability. NVIDIA G-SYNC: Offers enhanced motion clarity, smooth tear-free immersion, and ultra-high frame rates. Performance and Application Benefits of the Asus Prime GeForce RTX 5060 Ti 8GB GDDR7 OC Edition 1080p Gaming: Delivers exceptional performance in modern games at high settings, ensuring smooth and immersive gameplay. AI and Machine Learning: Equipped with specialized AI Tensor Cores, providing advanced performance for AI-driven applications and workflows. Content Creation: Accelerates rendering tasks, video editing, and 3D modeling, making it suitable for creators and professionals. Energy Efficiency: Designed to be energy-efficient, with a recommended PSU of 550W, ensuring it doesn’t overburden your system’s power supply. Versatile Connectivity: Includes one HDMI 2.1b port and three DisplayPort 2.1b outputs, supporting multi-monitor setups and high-speed connections.
